Dental instruments

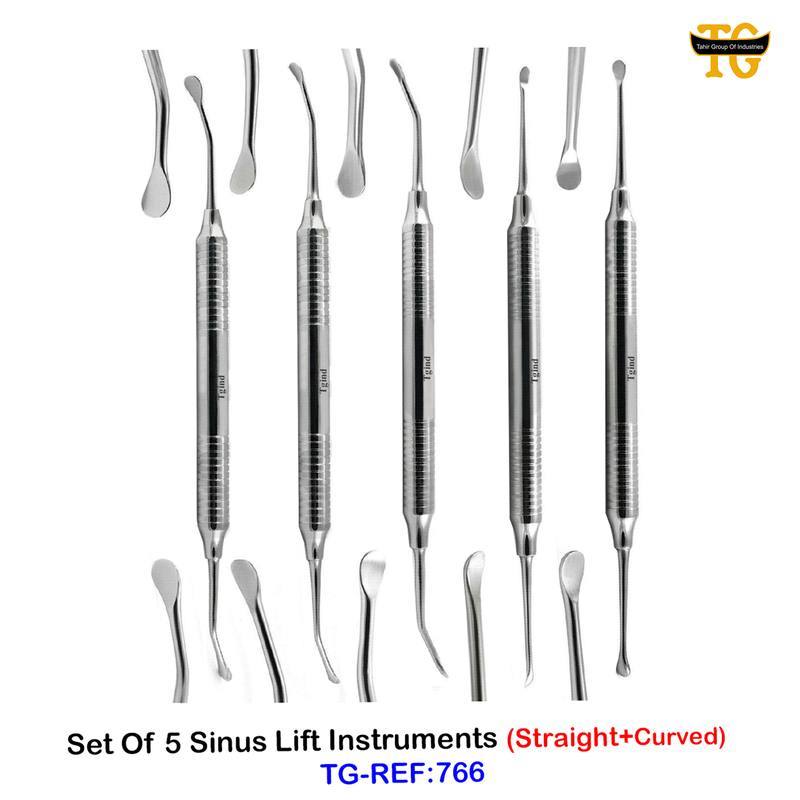

Sinus Lift Instruments Set
TGI referenceTG-REF:766Quote this to us. It is printed on TGI's own catalog photograph of this article.TGI-C-032CCDF3 Web reference. It identifies this page, not a factory part number.
Also printed on the photograph(Straight+Curved) Printed on TGI's own catalogue photograph of this article.
Also called instrument kit
Built around osteotomes and curettes shaped to elevate the maxillary sinus membrane off the sinus floor for bone grafting, rather than instruments for extracting a tooth or seating an implant fixture.
An instrument set is not one article but a fixed group of individual named instruments packed and sold together as a single item, laid out in a tray, cassette or roll pouch that assigns each piece its own place. What separates one set from another is its set list (which named instruments it contains and how many of each), rather than any single joint, blade or jaw form, since a set spans several instrument categories at once, for example forceps, scissors and retractors packed together for one procedure or one general purpose. Because composition is defined by the list and not by a single manufactured dimension, there is no market-wide length or size standard for "an instrument set" the way there is for a single scissors or forceps pattern.
Minimum order25 setsThe minimum for this set. Mixed orders are quoted against your list.
Lead timeInstruments ~2-3 weeks · full sets ~4-6 weeks after advance.
Quality control
The inspection step is set by the line you order.
- Economy line
- sample: visual + dimensional
- Clinical line
- sample + boil test
- Premium line
- tighter sample + hardness test
- Executive line
- 100% inspection + laser mark
Finish A color is a second choice, made on top of the line. Colored finishes on request, on any instrument, in addition to the steel line. Evidenced: black · gold · rose gold · blue · rainbow (anodised titanium).
How it is built
- A container (tray, cassette or roll pouch) holding a defined group of separate instruments, not a single mechanism
- Composition fixed by a written set list: which named instruments, and how many of each
- Spans multiple instrument categories within one set (e.g. forceps, scissors, retractors together)
- No single joint, blade or jaw form applies to the set as a whole: each contained instrument has its own
- Size/scope varies by procedure or purpose (basic vs. extended set) rather than by a manufactured dimension
Why this article has no size range
This is supplied as a set: a fixed list of instruments in a tray, cassette or pouch. A set is defined by which instruments it contains and how many of each, not by a manufactured length, so no size range is published for it. Tell us the list you need and we will quote against it.
This describes the instrument set as an article. 34 other articles in this catalog share it: the sentence above is what separates this one. This describes the article. The steel, the finish and the inspection step are set by the line you order.
Material and quality
| Line | Steel | Origin | Finish | Inspection |
|---|---|---|---|---|
| Economy line | AISI 410 | Pakistani or Taiwanese | satin, passivated | sample: visual + dimensional |
| Clinical line | AISI 420 | Pakistani or German | satin, passivated | sample + boil test |
| Premium line | AISI 420-440C | German or Japanese | fine polish, passivated | tighter sample + hardness test |
| Executive line | AISI 440C | German or Japanese | mirror polish, passivated | 100% inspection + laser mark |
This is the steel each line is made from as standard. A different origin can be supplied on request (a lower grade in Japanese steel, for example), agreed on your order.
Premium is the line where the choice is yours: 420 or 440C, agreed on your order. Economy is always 410 and Executive is always 440C. Those three are the instrument steels. Hollowware and sterilization containers are made in AISI 202 on a Clinical order and AISI 304 on a Premium or Executive one, and they are not offered in the Economy line at all, which is the section above.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
