Dental implant kits
Prosthetic Screw Drivers Kit
Web referenceTGI-C-C7B449F2Quote this to us. It identifies this page, not a factory part number.

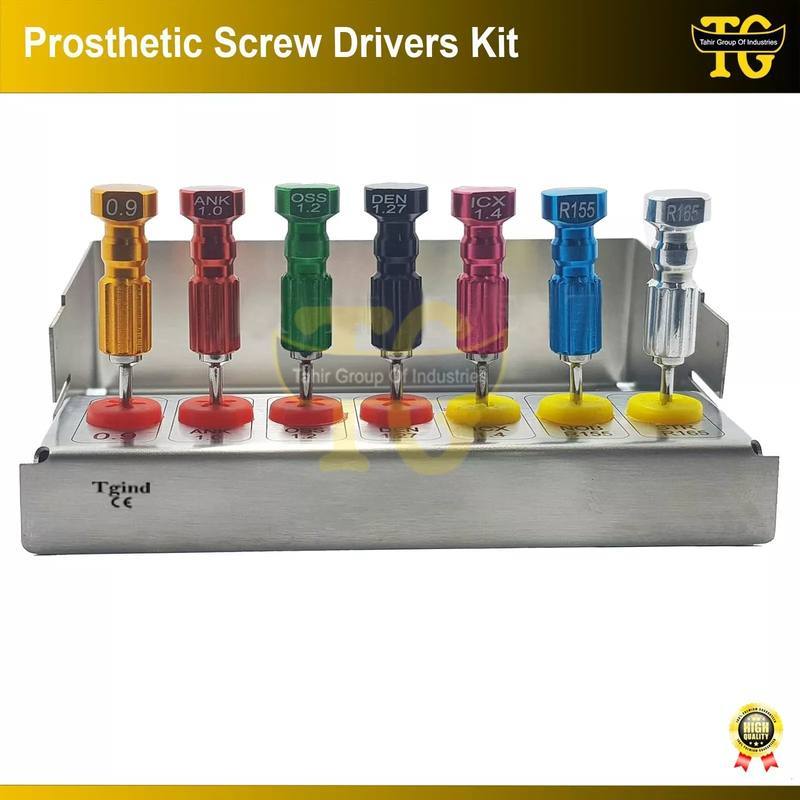

Also printed on the photographANK 1.0 · OSS 1.2 · DEN 1.27 · ICX 1.4 · R155 · 0.9 · 1.0 · 1.2 · 1.27 · 1.4 Printed on TGI's own catalogue photograph of this article.
A kit of prosthetic screwdrivers. The seven driver designations are published as numbers so a buyer can match his own system; TGI publishes no third-party implant brand names.
An implant prosthetic kit is a set of driving and torque instruments used at the restorative stage of implant treatment, after the implant itself is already placed and integrated into bone. It is built around a torque wrench with a calibrated N·cm scale, supplied with a set of interchangeable driver tips, straight and angled, each cut to the drive-head shape of one implant brand's abutment and prosthetic screws. A driver holder bar keeps the tips indexed and separated through autoclaving. Because drive-head shape and torque values are set by the implant system the screws belong to, the tips in one kit are not interchangeable with another system's screws.
Minimum order100 kitsThe minimum for dental implant kits. Mixed orders are quoted against your list.
Lead timeInstruments ~2-3 weeks · full sets ~4-6 weeks after advance.
Quality control
The inspection step is set by the line you order.
- Economy line
- sample: visual + dimensional
- Clinical line
- sample + boil test
- Premium line
- tighter sample + hardness test
- Executive line
- 100% inspection + laser mark
Finish A color is a second choice, made on top of the line. Colored finishes on request, on any instrument, in addition to the steel line. Evidenced: black · gold · rose gold · blue · rainbow (anodised titanium).
How it is built
- Torque wrench with a calibrated N·cm scale, adjustable across the range the implant system specifies
- Interchangeable driver tips cut to a hex, square, or system-specific drive-head profile
- Straight and angled driver options (angled examples found at 20 degrees) for posterior access
- Driver holder bar or rack that indexes each tip in a fixed position for autoclaving
- Packaged in an autoclavable tray with a labeled slot per component
Patternsstraight driver kit · angled driver kit · multi-tip kit with interchangeable driver heads
The sizes this named pattern is made in
0.9 · 1.0 · 1.2 · 1.27 · 1.4 · R155 · R185
These are the sizes published for this named pattern specifically, rather than the wider range its kind of instrument is made in. They are not a stock list. Tell us the size you need and we will quote against it.
Why this article has no size range
This is supplied as a set: a fixed list of instruments in a tray, cassette or pouch. A set is defined by which instruments it contains and how many of each, not by a manufactured length, so no size range is published for it. Tell us the list you need and we will quote against it.
This describes the implant prosthetic kit as an article. 1 other article in this catalog shares it: the sentence above is what separates this one. This describes the article. The steel, the finish and the inspection step are set by the line you order.
Material and quality
| Line | Steel | Origin | Finish | Inspection |
|---|---|---|---|---|
| Economy line | AISI 410 | Pakistani or Taiwanese | satin, passivated | sample: visual + dimensional |
| Clinical line | AISI 420 | Pakistani or German | satin, passivated | sample + boil test |
| Premium line | AISI 420-440C | German or Japanese | fine polish, passivated | tighter sample + hardness test |
| Executive line | AISI 440C | German or Japanese | mirror polish, passivated | 100% inspection + laser mark |
This is the steel each line is made from as standard. A different origin can be supplied on request (a lower grade in Japanese steel, for example), agreed on your order.
Premium is the line where the choice is yours: 420 or 440C, agreed on your order. Economy is always 410 and Executive is always 440C. Those three are the instrument steels. Hollowware and sterilization containers are made in AISI 202 on a Clinical order and AISI 304 on a Premium or Executive one, and they are not offered in the Economy line at all, which is the section above.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
