Dental implant kits
12 Pcs Dental Bone Collector Chip Maker Drills & Stoppers Kit
Web referenceTGI-C-87F6A768Quote this to us. It identifies this page, not a factory part number.
Sizes TGI publishes5mm · 10mm Printed on TGI's own catalogue photograph of this article.
Also called Bone harvesting drill kit

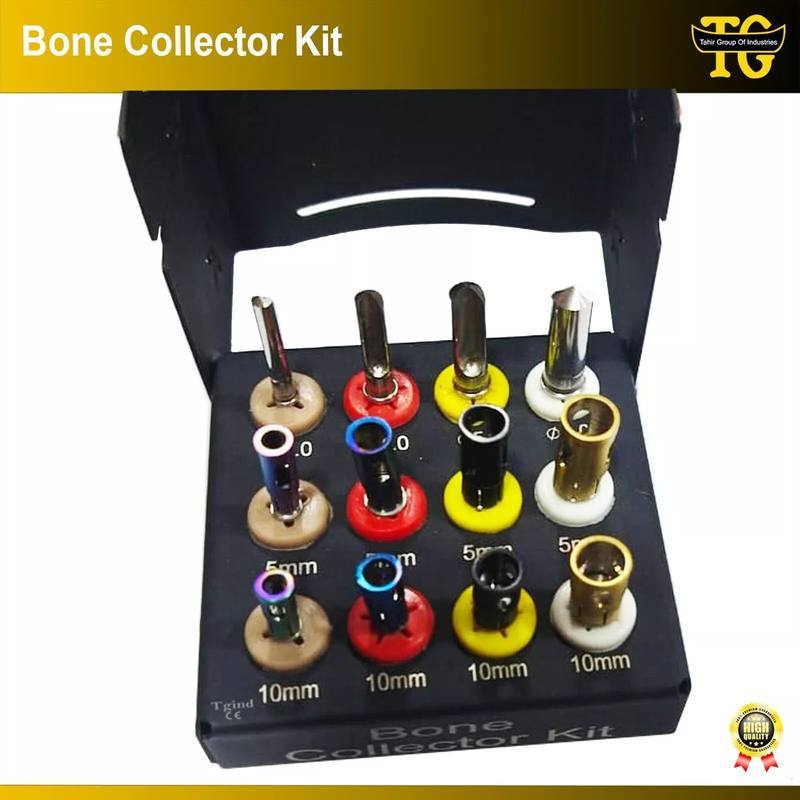

Twelve pieces: four drills at 2, 3, 4 and 5 mm, four stoppers at 5 mm and four at 10 mm. The drill is hollow, so the bone it cuts is retained inside it: that is what the trade calls a chip maker or a bone collector, and both names describe the same drill.
A bone collector drill kit is a boxed set of hollow rotary drills that harvest the patient's own bone while a site is being prepared, supplied with the depth stoppers that go with them. The working head is a thin-walled cylinder, open at the cutting end, so the bone it cuts is retained inside the barrel instead of being carried off as debris, and is recovered through a window in the barrel wall or from the open end for use as graft material. The trade also lists the same drill as a bone chip maker or chip collector. The stoppers are sleeves that seat over the drill and are marked with the working depth they leave standing, so one kit carries several depths and several head diameters. The drills mount in a slow-speed surgical handpiece, and the kit is supplied in a case with a seat for each piece.
Minimum order100 kitsThe minimum for dental implant kits. Mixed orders are quoted against your list.
Lead timeInstruments ~2-3 weeks · full sets ~4-6 weeks after advance.
Quality control
The inspection step is set by the line you order.
- Economy line
- sample: visual + dimensional
- Clinical line
- sample + boil test
- Premium line
- tighter sample + hardness test
- Executive line
- 100% inspection + laser mark
Finish A color is a second choice, made on top of the line. Colored finishes on request, on any instrument, in addition to the steel line. Evidenced: black · gold · rose gold · blue · rainbow (anodised titanium).
How it is built
- Working head is a thin-walled hollow cylinder, open at the cutting end, and the cut bone is retained inside the barrel
- Cutting rim is scalloped or toothed around the open end
- A window cut through the barrel wall on several heads, for emptying the harvested bone
- Heads made in a range of outside diameters, with different colored finishes within one kit
- Depth stoppers supplied as sleeves marked with the working depth they leave standing
- Shank mounts in a slow-speed surgical handpiece
- Supplied in a fitted case with a seat for each drill and each stopper
PatternsBone collector drill · Bone chip maker drill
This describes the article. The steel, the finish and the inspection step are set by the line you order.
Material and quality
| Line | Steel | Origin | Finish | Inspection |
|---|---|---|---|---|
| Economy line | AISI 410 | Pakistani or Taiwanese | satin, passivated | sample: visual + dimensional |
| Clinical line | AISI 420 | Pakistani or German | satin, passivated | sample + boil test |
| Premium line | AISI 420-440C | German or Japanese | fine polish, passivated | tighter sample + hardness test |
| Executive line | AISI 440C | German or Japanese | mirror polish, passivated | 100% inspection + laser mark |
This is the steel each line is made from as standard. A different origin can be supplied on request (a lower grade in Japanese steel, for example), agreed on your order.
Premium is the line where the choice is yours: 420 or 440C, agreed on your order. Economy is always 410 and Executive is always 440C. Those three are the instrument steels. Hollowware and sterilization containers are made in AISI 202 on a Clinical order and AISI 304 on a Premium or Executive one, and they are not offered in the Economy line at all, which is the section above.
True of every order
Instruments are marked to the buyer's requirement (TGI, unmarked, or the buyer's own brand), agreed on the order.
Customized packaging is part of what TGI supplies. Your own printed boxes, your labels, your brand on the pack, or plain export packing, whichever your market needs. The packing for your order is agreed with you and confirmed on the order.
Manufactured under the quality management system covered by TGI's ISO 9001:2015 and ISO 13485:2016 certificates. Certificate numbers and the issuer's registry are on the certification page. Open the certificates
Every batch of steel is ordered to a specified grade and arrives with the mill's own certificate, which identifies the mill and states the grade. TGI checks the material at the factory against its own requirement before it goes into production. That check is TGI's own inspection, not an independent laboratory test.
TGI manufactures in its own factory in Sialkot and also supplies articles made by contracted partner workshops, to TGI's specification. Which applies to a given article is confirmed on your order.
One-year guarantee on Premium and Executive tier instruments, hollowware and sterilization containers: any technical manufacturing defect, including material faults and rust, is replaced free of charge. Damage from handling or accidents is not covered. The year runs from the day the goods leave Sialkot.
If something is wrong with a delivery (a manufacturing defect, or a short or wrong article), tell us on WhatsApp within 7 days of delivery, with a video and photographs of what arrived. Replacement instruments are sent free of charge and dispatched within 24 hours of us seeing them; you pay the shipping, and they reach you as a normal order does.
Damage that happened after the goods left Sialkot is a claim against your carrier. The video of your parcel at the shipping office is sent to you before shipment and is the evidence that claim needs.
