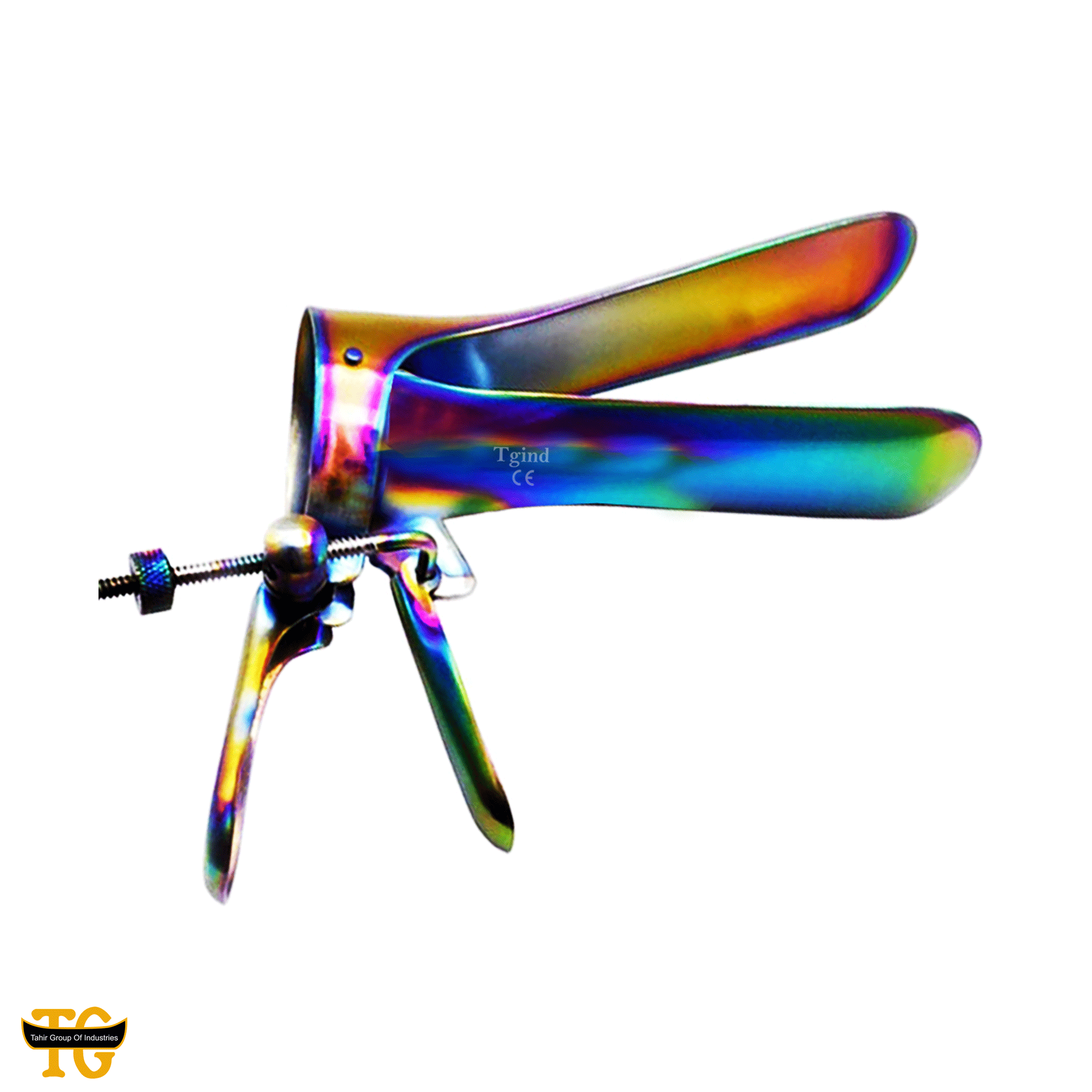

The Graves Vaginal Speculum is a commonly used, self-retaining bivalve instrument in gynecology, designed for examinations and minor procedures involving the cervix and vaginal canal. It features wider, curved blades compared to other specula, making it particularly useful in patients with a more spacious vaginal canal or after childbirth.
🔧 Design & Structure
-
Type: Self-retaining, bivalve vaginal speculum
-
Blades: Two curved, duckbill-shaped blades that open horizontally, providing both anterior and posterior wall retraction
-
Mechanism: Features a central screw or ratchet locking system that holds the blades open during procedures
-
Handle: Straight or slightly angled handles for comfortable grip and one-handed operation
-
Material: Made from surgical stainless steel (reusable) or medical-grade plastic (disposable)
-
Finish: Often satin or polished to reduce glare and enhance visibility
📏 Typical Sizes
Graves specula come in various sizes:
-
Small: For adolescents or nulliparous women
-
Medium: Standard adult size
-
Large: For parous women or those with more vaginal laxity
Blade dimensions typically range from:
-
Length: 75–110 mm
-
Width: 22–36 mm per blade
🩺 Common Uses
-
Routine pelvic exams
-
Pap smears
-
IUD insertion and removal
-
Colposcopy
-
Endometrial sampling
-
Vaginal discharge evaluation
-
Visual inspection of the cervix and vaginal walls
✅ Advantages
-
Wide blade curvature provides excellent visualization, especially in parous women
-
Self-retaining mechanism allows hands-free use once positioned
-
Suitable for diagnostic and minor procedural use
-
Reusable and disposable options available depending on setting and infection control needs
-
Durable, easy to clean, and compatible with standard sterilization methods (for metal versions)
⚠️ Limitations
-
May be too wide or uncomfortable for use in adolescents or nulliparous women
-
Curved blades can obstruct access to the lateral vaginal walls in some procedures
-
Not typically used in deep pelvic surgeries—other retractors (like Sims or Auvard) may offer better exposure
📝 Summary
The Graves Vaginal Speculum is a versatile and widely used tool for routine gynecological exams and minor procedures. Its curved, self-retaining blades offer excellent visibility of the cervix and vaginal walls, making it a preferred choice for practitioners working with adult and postpartum patients. Durable, effective, and easy to use, it remains a staple instrument in both office and clinical settings.
